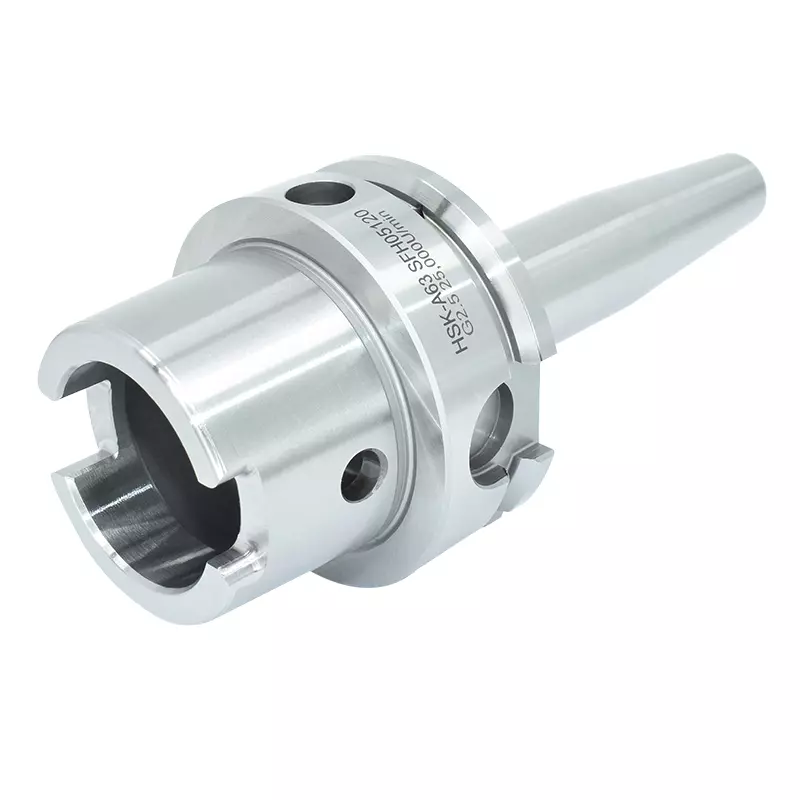

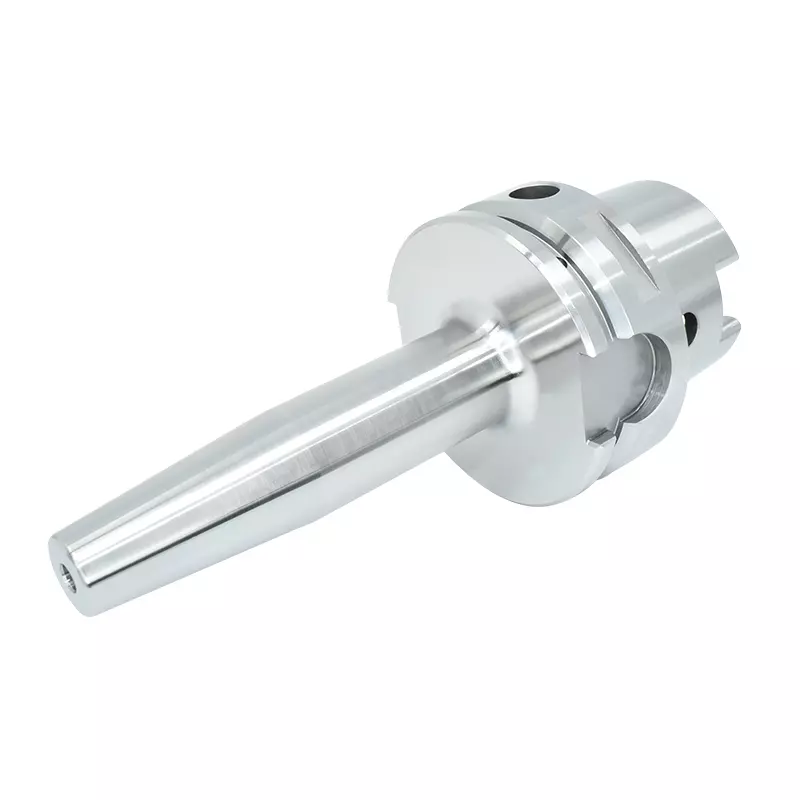

HSK-A 63 (DIN 69893-1) Schrumpffutter
Produktnummer: SFH63A-06-080 LC
Produktinformationen "HSK-A 63 (DIN 69893-1) Schrumpffutter"
HSK-A 63 (DIN 69893-1) Schrumpffutter
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm

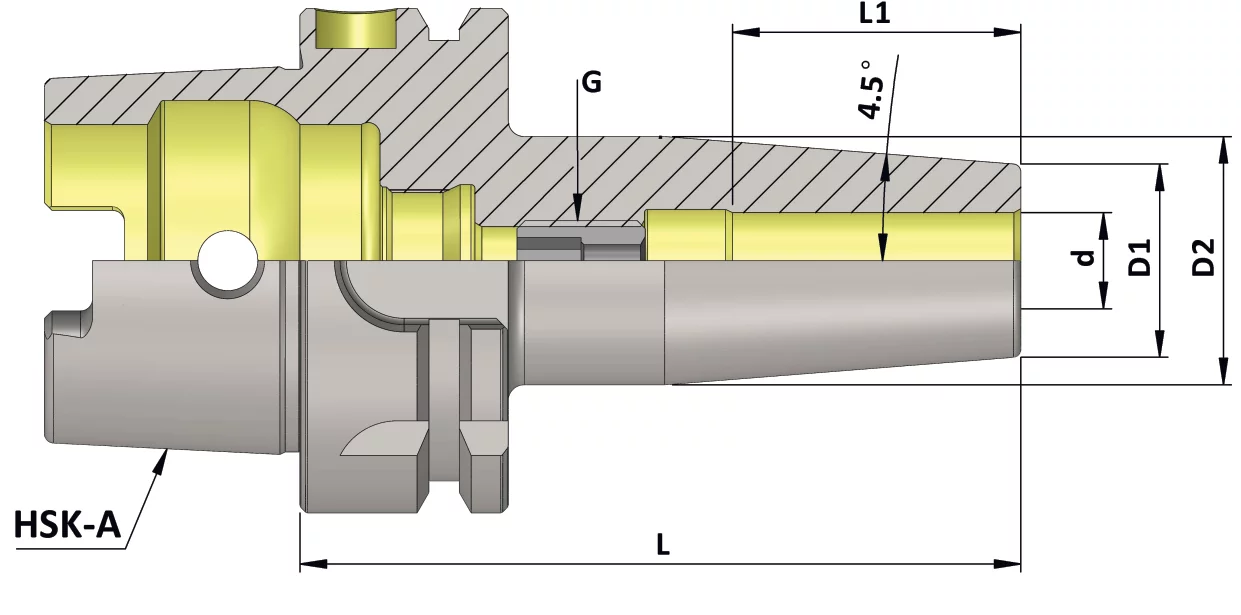

| Artikelbezeichnung | Artikelcode | HSK-A | d | D1 | D2 | G | L | L1 |
| HSK-A63 SFH03 080 2.5G 25000 SL | SFH63A-03-080 LC | 63 | 3 | 10 | 20 | - | 80 | 13 |
| HSK-A63 SFH03 120 2.5G 25000 SL | SFH63A-03-120 LC | 63 | 3 | 10 | 20 | - | 120 | 13 |
| HSK-A63 SFH03 160 2.5G 25000 SL | SFH63A-03-160 LC | 63 | 3 | 10 | 20 | - | 160 | 13 |
| HSK-A 63 SFH03 200 2.5G 25000 SL | SFH63A-03-200 LC | 63 | 3 | 10 | 20 | - | 200 | 13 |
| HSK-A63 SFH04 080 2.5G 25000 SL | SFH63A-04-080 LC | 63 | 4 | 15 | 22 | - | 80 | 14 |
| HSK-A63 SFH04 120 2.5G 25000 SL | SFH63A-04-120 LC | 63 | 4 | 15 | 22 | - | 120 | 14 |
| HSK-A63 SFH04 160 2.5G 25000 SL | SFH63A-04-160 LC | 63 | 4 | 15 | 22 | - | 160 | 14 |
| HSK-A 63 SFH04 200 2.5G 25000 SL | SFH63A-04-200 LC | 63 | 4 | 15 | 22 | - | 200 | 14 |
| HSK-A63 SFH05 080 2.5G 25000 SL | SFH63A-05-080 LC | 63 | 5 | 15 | 22 | - | 80 | 14 |
| HSK-A63 SFH05 120 2.5G 25000 SL | SFH63A-05-120 LC | 63 | 5 | 15 | 22 | - | 120 | 14 |
| HSK-A63 SFH05 160 2.5G 25000 SL | SFH63A-05-160 LC | 63 | 5 | 15 | 22 | - | 160 | 14 |
| HSK-A 63 SFH05 200 2.5G 25000 SL | SFH63A-05-200 LC | 63 | 5 | 15 | 22 | - | 200 | 14 |
| HSK-A63 SFH06 080 2.5G 25000 SL | SFH63A-06-080 LC | 63 | 6 | 21 | 27 | M5 | 80 | 22 |
| HSK-A63 SFH06 120 2.5G 25000 SL | SFH63A-06-120 LC | 63 | 6 | 21 | 27 | M5 | 120 | 22 |
| HSK-A63 SFH06 160 2.5G 25000 SL | SFH63A-06-160 LC | 63 | 6 | 21 | 27 | M5 | 160 | 22 |
| HSK-A63 SFH06 200 2.5G 25000 SL | SFH63A-06-200 LC | 63 | 6 | 21 | 27 | M5 | 200 | 22 |
| HSK-A63 SFH08 080 2.5G 25000 SL | SFH63A-08-080 LC | 63 | 8 | 21 | 27 | M6 | 80 | 26 |
| HSK-A63 SFH08 120 2.5G 25000 SL | SFH63A-08-120 LC | 63 | 8 | 21 | 27 | M6 | 120 | 26 |
| HSK-A63 SFH08 160 2.5G 25000 SL | SFH63A-08-160 LC | 63 | 8 | 21 | 27 | M6 | 160 | 26 |
| HSK-A63 SFH08 200 2.5G25000 SL | SFH63A-08-200 LC | 63 | 8 | 21 | 27 | M6 | 200 | 26 |
| HSK-A63 SFH10 085 2.5G 25000 SL | SFH63A-10-085 LC | 63 | 10 | 24 | 31 | M8 | 85 | 31 |
| HSK-A63 SFH10 120 2.5G 25000 SL | SFH63A-10-120 LC | 63 | 10 | 24 | 31 | M8 | 120 | 31 |
| HSK-A63 SFH10 160 2.5G 25000 SL | SFH63A-10-160 LC | 63 | 10 | 24 | 31 | M8 | 160 | 31 |
| HSK-A63 SFH10 200 2.5G25000 SL | SFH63A-10-200 LC | 63 | 10 | 24 | 31 | M8 | 200 | 31 |
| HSK-A63 SFH12 090 2.5G 25000 SL | SFH63A-12-090 LC | 63 | 12 | 24 | 31 | M10 | 90 | 36 |
| HSK-A63 SFH12 120 2.5G 25000 SL | SFH63A-12-120 LC | 63 | 12 | 24 | 31 | M10 | 120 | 36 |
| HSK-A63 SFH12 160 2.5G 25000 SL | SFH63A-12-160 LC | 63 | 12 | 24 | 31 | M10 | 160 | 36 |
| HSK-A63 SFH12 200 2.5G25000 SL | SFH63A-12-200 LC | 63 | 12 | 24 | 31 | M10 | 200 | 36 |
| HSK-A63 SFH14 090 2.5G 25000 SL | SFH63A-14-090 LC | 63 | 14 | 27 | 34 | M10 | 90 | 36 |
| HSK-A63 SFH14 120 2.5G 25000 SL | SFH63A-14-120 LC | 63 | 14 | 27 | 34 | M10 | 120 | 36 |
| HSK-A63 SFH14 160 2.5G 25000 SL | SFH63A-14-160 LC | 63 | 14 | 27 | 34 | M10 | 160 | 36 |
| HSK-A63 SFH14 200 2.5G25000 SL | SFH63A-14-200 LC | 63 | 14 | 27 | 34 | M10 | 200 | 36 |
| HSK-A63 SFH16 095 2.5G 25000 SL | SFH63A-16-095 LC | 63 | 16 | 27 | 34 | M12 | 95 | 39 |
| HSK-A63 SFH16 120 2.5G 25000 SL | SFH63A-16-120 LC | 63 | 16 | 27 | 34 | M12 | 120 | 39 |
| HSK-A63 SFH16 160 2.5G 25000 SL | SFH63A-16-160 LC | 63 | 16 | 27 | 34 | M12 | 160 | 39 |
| HSK-A63 SFH16 200 2.5G25000 SL | SFH63A-16-200 LC | 63 | 16 | 27 | 34 | M12 | 200 | 39 |
| HSK-A63 SFH18 095 2.5G 25000 SL | SFH63A-18-095 LC | 63 | 18 | 33 | 40 | M12 | 95 | 39 |
| HSK-A63 SFH18 120 2.5G 25000 SL | SFH63A-18-120 LC | 63 | 18 | 33 | 40 | M12 | 120 | 39 |
| HSK-A63 SFH18 160 2.5G 25000 SL | SFH63A-18-160 LC | 63 | 18 | 33 | 40 | M12 | 160 | 39 |
| HSK-A63 SFH18 200 2.5G25000 SL | SFH63A-18-200 LC | 63 | 18 | 33 | 40 | M12 | 200 | 39 |
| HSK-A63 SFH20 100 2.5G 25000 SL | SFH63A-20-100 LC | 63 | 20 | 33 | 40 | M16 | 100 | 41 |
| HSK-A63 SFH20 120 2.5G 25000 SL | SFH63A-20-120 LC | 63 | 20 | 33 | 40 | M16 | 120 | 41 |
| HSK-A63 SFH20 160 2.5G 25000 SL | SFH63A-20-160 LC | 63 | 20 | 33 | 40 | M16 | 160 | 41 |
| HSK-A63 SFH20 200 2.5G25000 SL | SFH63A-20-200 LC | 63 | 20 | 33 | 40 | M16 | 200 | 41 |
| HSK-A63 SFH25 115 2.5G 25000 SL | SFH63A-25-115 LC | 63 | 25 | 44 | 53 | M16 | 115 | 47 |
| HSK-A63 SFH25 120 2.5G 25000 SL | SFH63A-25-120 LC | 63 | 25 | 44 | 53 | M16 | 120 | 47 |
| HSK-A63 SFH25 160 2.5G 25000 SL | SFH63A-25-160 LC | 63 | 25 | 44 | 53 | M16 | 160 | 47 |
| HSK-A63 SFH25 200 2.5G25000 SL | SFH63A-25-200 LC | 63 | 25 | 44 | 53 | M16 | 200 | 47 |
| HSK-A63 SFH32 120 2.5G 25000 SL | SFH63A-32-120 LC | 63 | 32 | 44 | 53 | M16 | 120 | 51 |
| HSK-A63 SFH32 160 2.5G 25000 SL | SFH63A-32-160 LC | 63 | 32 | 44 | 53 | M16 | 160 | 51 |
| HSK-A63 SFH32 200 2.5G25000 SL | SFH63A-32-200 LC | 63 | 32 | 44 | 53 | M16 | 200 | 51 |
