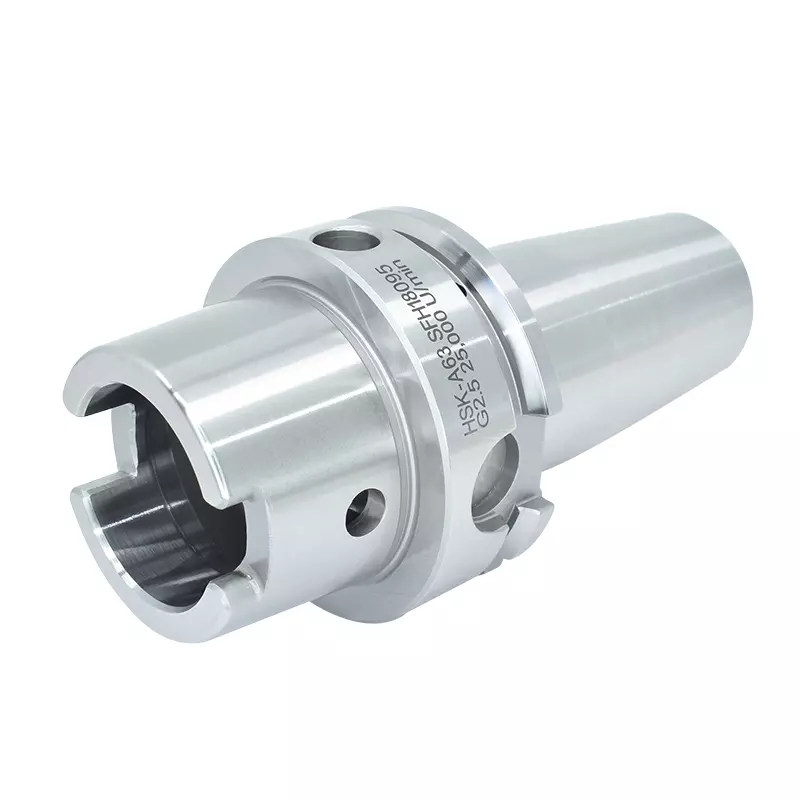

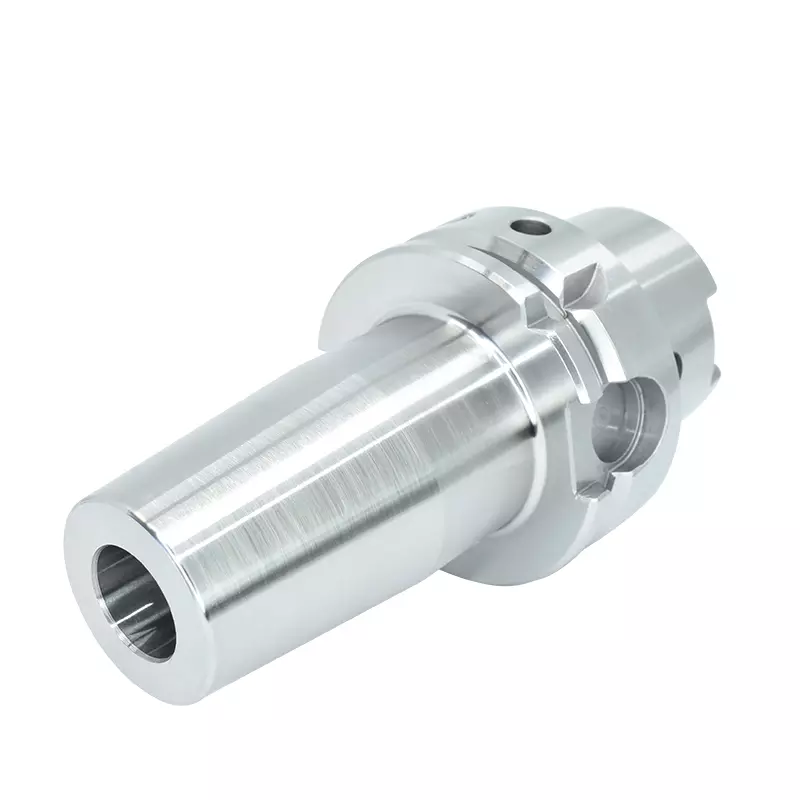

HSK-A 63 (DIN 69893-1) Schrumpffutter KKB
Produktnummer: SFH63A-18-095 KKB LC
Produktinformationen "HSK-A 63 (DIN 69893-1) Schrumpffutter KKB"
HSK-A 63 (DIN 69893-1) Schrumpffutter KKB
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm

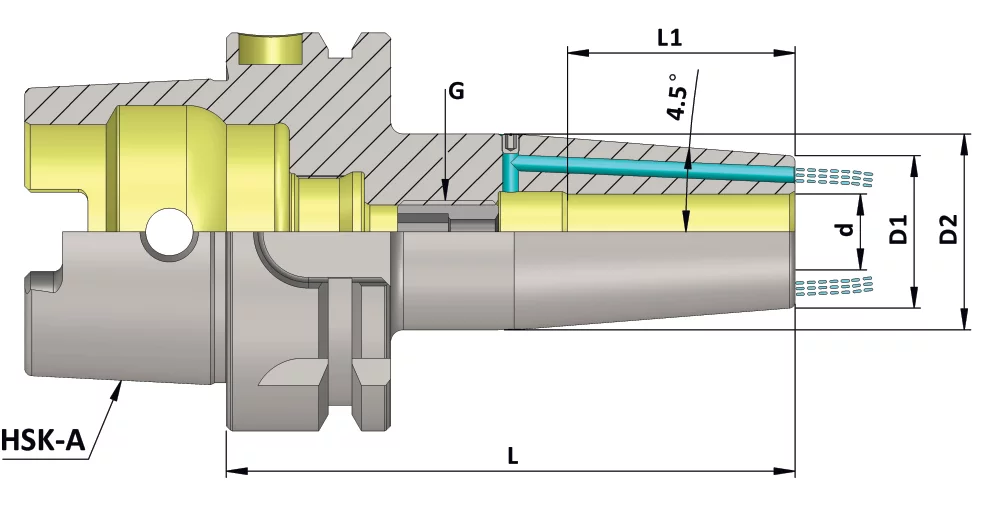

| Artikelbezeichnung | Artikelcode | HSK-A | d | D1 | D2 | G | L | L1 |
| HSK-A50 SFH03 080 FCC 2.5G 25000 SL | SFH50A-03-080 KKB LC | 50 | 3 | 10 | 20 | - | 80 | 13 |
| HSK-A50 SFH03 120 FCC 2.5G 25000 SL | SFH50A-03-120 KKB LC | 50 | 3 | 10 | 20 | - | 120 | 13 |
| HSK-A50 SFH03 160 FCC 2.5G 25000 SL | SFH50A-03-160 KKB LC | 50 | 3 | 10 | 20 | - | 160 | 13 |
| HSK-A50 SFH04 080 FCC 2.5G 25000 SL | SFH50A-04-080 KKB LC | 50 | 4 | 15 | 22 | - | 80 | 14 |
| HSK-A50 SFH04 120 FCC 2.5G 25000 SL | SFH50A-04-120 KKB LC | 50 | 4 | 15 | 22 | - | 120 | 14 |
| HSK-A50 SFH04 160 FCC 2.5G 25000 SL | SFH50A-04-160 KKB LC | 50 | 4 | 15 | 22 | - | 160 | 14 |
| HSK-A50 SFH05 080 FCC 2.5G 25000 SL | SFH50A-05-080 KKB LC | 50 | 5 | 15 | 22 | - | 80 | 14 |
| HSK-A50 SFH05 120 FCC 2.5G 25000 SL | SFH50A-05-120 KKB LC | 50 | 5 | 15 | 22 | - | 120 | 14 |
| HSK-A50 SFH05 160 FCC 2.5G 25000 SL | SFH50A-05-160 KKB LC | 50 | 5 | 15 | 22 | - | 160 | 14 |
| HSK-A50 SFH06 080 FCC 2.5G 25000 SL | SFH50A-06-080 KKB LC | 50 | 6 | 21 | 27 | M5 | 80 | 22 |
| HSK-A50 SFH06 120 FCC 2.5G 25000 SL | SFH50A-06-120 KKB LC | 50 | 6 | 21 | 27 | M5 | 120 | 22 |
| HSK-A50 SFH06 160 FCC 2.5G 25000 SL | SFH50A-06-160 KKB LC | 50 | 6 | 21 | 27 | M5 | 160 | 22 |
| HSK-A50 SFH08 080 FCC 2.5G 25000 SL | SFH50A-08-080 KKB LC | 50 | 8 | 21 | 27 | M6 | 80 | 26 |
| HSK-A50 SFH08 120 FCC 2.5G 25000 SL | SFH50A-08-120 KKB LC | 50 | 8 | 21 | 27 | M6 | 120 | 26 |
| HSK-A50 SFH08 160 FCC 2.5G 25000 SL | SFH50A-08-160 KKB LC | 50 | 8 | 21 | 27 | M6 | 160 | 26 |
| HSK-A50 SFH10 085 FCC 2.5G 25000 SL | SFH50A-10-085 KKB LC | 50 | 10 | 24 | 31 | M8 | 85 | 31 |
| HSK-A50 SFH10 120 FCC 2.5G 25000 SL | SFH50A-10-120 KKB LC | 50 | 10 | 24 | 31 | M8 | 120 | 31 |
| HSK-A50 SFH10 160 FCC 2.5G 25000 SL | SFH50A-10-160 KKB LC | 50 | 10 | 24 | 31 | M8 | 160 | 31 |
| HSK-A50 SFH12 090 FCC 2.5G 25000 SL | SFH50A-12-090 KKB LC | 50 | 12 | 24 | 31 | M10 | 90 | 36 |
| HSK-A50 SFH12 120 FCC 2.5G 25000 SL | SFH50A-12-120 KKB LC | 50 | 12 | 24 | 31 | M10 | 120 | 36 |
| HSK-A50 SFH12 160 FCC 2.5G 25000 SL | SFH50A-12-160 KKB LC | 50 | 12 | 24 | 31 | M10 | 160 | 36 |
| HSK-A50 SFH14 090 FCC 2.5G 25000 SL | SFH50A-14-090 KKB LC | 50 | 14 | 27 | 34 | M10 | 90 | 36 |
| HSK-A50 SFH14 120 FCC 2.5G 25000 SL | SFH50A-14-120 KKB LC | 50 | 14 | 27 | 34 | M10 | 120 | 36 |
| HSK-A50 SFH14 160 FCC 2.5G 25000 SL | SFH50A-14-160 KKB LC | 50 | 14 | 27 | 34 | M10 | 160 | 36 |
| HSK-A50 SFH16 095 FCC 2.5G 25000 SL | SFH50A-16-095 KKB LC | 50 | 16 | 27 | 34 | M12 | 95 | 39 |
| HSK-A50 SFH16 120 FCC 2.5G 25000 SL | SFH50A-16-120 KKB LC | 50 | 16 | 27 | 34 | M12 | 120 | 39 |
| HSK-A50 SFH16 160 FCC 2.5G 25000 SL | SFH50A-16-160 KKB LC | 50 | 16 | 27 | 34 | M12 | 160 | 39 |
| HSK-A50 SFH18 095 FCC 2.5G 25000 SL | SFH50A-18-095 KKB LC | 50 | 18 | 33 | 40 | M12 | 95 | 39 |
| HSK-A50 SFH18 120 FCC 2.5G 25000 SL | SFH50A-18-120 KKB LC | 50 | 18 | 33 | 40 | M12 | 120 | 39 |
| HSK-A50 SFH18 160 FCC 2.5G 25000 SL | SFH50A-18-160 KKB LC | 50 | 18 | 33 | 40 | M12 | 160 | 39 |
| HSK-A50 SFH20 100 FCC 2.5G 25000 SL | SFH50A-20-100 KKB LC | 50 | 20 | 33 | 40 | M16 | 100 | 41 |
| HSK-A50 SFH20 120 FCC 2.5G 25000 SL | SFH50A-20-120 KKB LC | 50 | 20 | 33 | 40 | M16 | 120 | 41 |
| HSK-A50 SFH20 160 FCC 2.5G 25000 SL | SFH50A-20-160 KKB LC | 50 | 20 | 33 | 40 | M16 | 160 | 41 |
