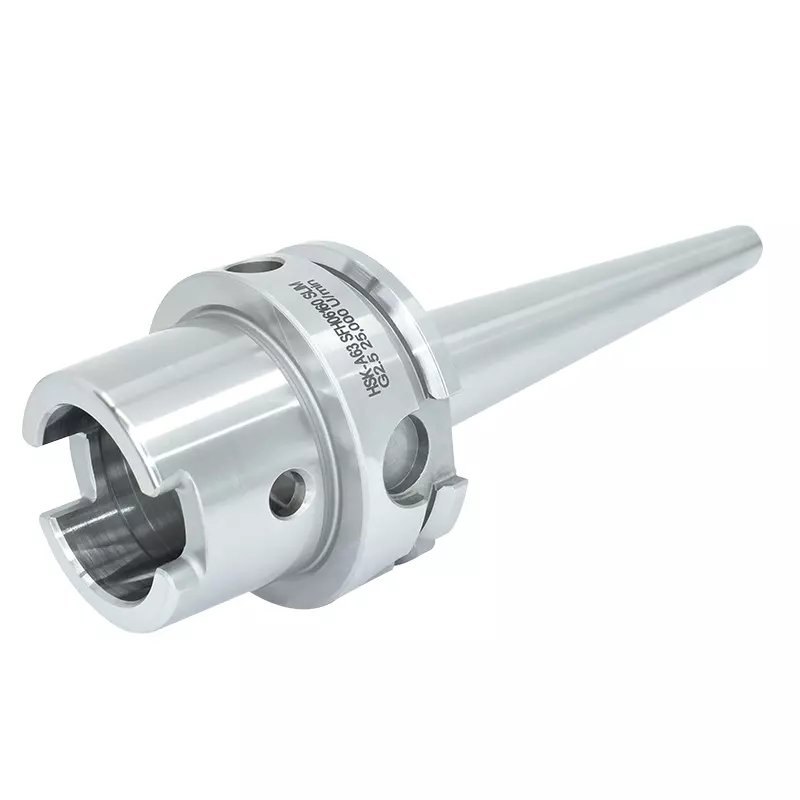

HSK-A 63 (DIN 69893-1) Schrumpffutter schlank
Produktnummer: SFH63A-14-090 SL LC
Produktinformationen "HSK-A 63 (DIN 69893-1) Schrumpffutter schlank"
HSK-A 63 (DIN 69893-1) Schrumpffutter schlank
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm

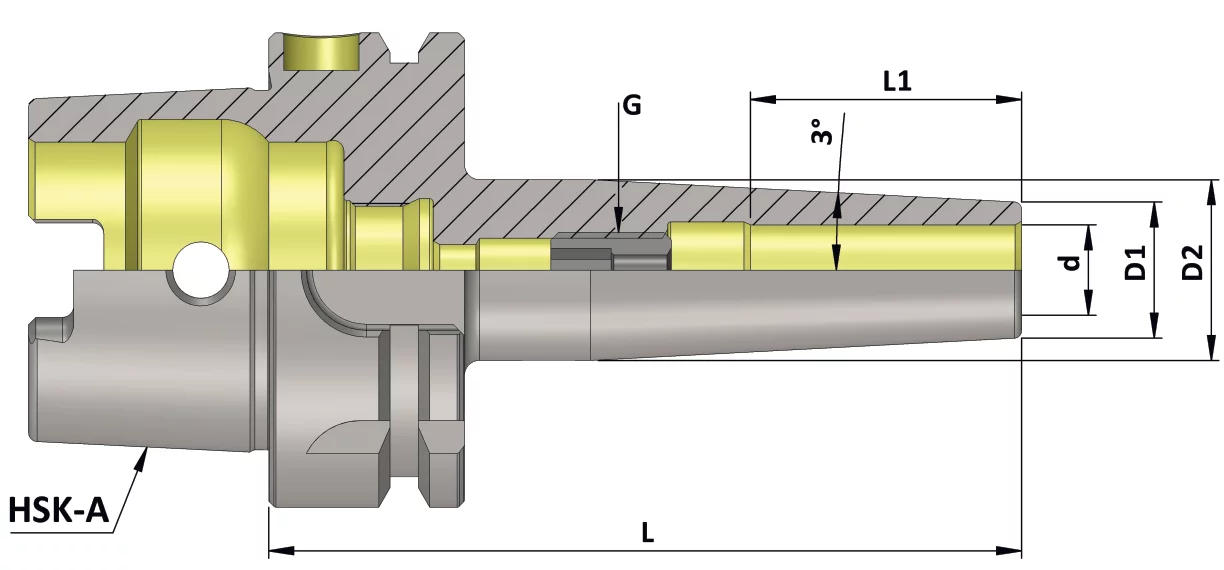

| Artikelbezeichnung | Artikelcode | HSK-A | d | D1 | D2 | G | L | L1 |
| HSK-A63 SFH03 080 SLIM 2.5G 25000 SL | SFH63A-03-080 SL LC | 63 | 3 | 9 | 14 | - | 80 | 13 |
| HSK-A63 SFH03 120 SLIM 2.5G 25000 SL | SFH63A-03-120 SL LC | 63 | 3 | 9 | 18 | - | 120 | 13 |
| HSK-A63 SFH03 160 SLIM 2.5G 25000 SL | SFH63A-03-160 SL LC | 63 | 3 | 9 | 19 | - | 160 | 13 |
| HSK-A 63 SFH03 200 SLIM 2.5G 25000SL | SFH63A-03-200 SL LC | 63 | 3 | 9 | 19 | - | 200 | 13 |
| HSK-A63 SFH04 080 SLIM 2.5G 25000 SL | SFH63A-04-080 SL LC | 63 | 4 | 10 | 15 | - | 80 | 14 |
| HSK-A63 SFH04 120 SLIM 2.5G 25000 SL | SFH63A-04-120 SL LC | 63 | 4 | 10 | 19 | - | 120 | 14 |
| HSK-A63 SFH04 160 SLIM 2.5G 25000 SL | SFH63A-04-160 SL LC | 63 | 4 | 10 | 23 | - | 160 | 14 |
| HSK-A63 SFH04 200 SLIM 2.5G 25000SL | SFH63A-04-200 SL LC | 63 | 4 | 10 | 23 | - | 200 | 14 |
| HSK-A63 SFH05 080 SLIM 2.5G 25000 SL | SFH63A-05-080 SL LC | 63 | 5 | 11 | 16 | - | 80 | 14 |
| HSK-A63 SFH05 120 SLIM 2.5G 25000 SL | SFH63A-05-120 SL LC | 63 | 5 | 11 | 20 | - | 120 | 14 |
| HSK-A63 SFH05 160 SLIM 2.5G 25000 SL | SFH63A-05-160 SL LC | 63 | 5 | 11 | 24 | - | 160 | 14 |
| HSK-A63 SFH05 200 SLIM 2.5G 25000SL | SFH63A-05-200 SL LC | 63 | 5 | 11 | 24 | - | 200 | 14 |
| HSK-A63 SFH06 080 SLIM 2.5G 25000 SL | SFH63A-06-080 SL LC | 63 | 6 | 12 | 17 | M5 | 80 | 22 |
| HSK-A63 SFH06 120 SLIM 2.5G 25000 SL | SFH63A-06-120 SL LC | 63 | 6 | 12 | 21 | M5 | 120 | 22 |
| HSK-A63 SFH06 160 SLIM 2.5G 25000 SL | SFH63A-06-160 SL LC | 63 | 6 | 12 | 25 | M5 | 160 | 22 |
| HSK-A63 SFH06 200 SLIM 2.5G 25000SL | SFH63A-06-200 SL LC | 63 | 6 | 12 | 25 | M5 | 200 | 22 |
| HSK-A63 SFH08 080 SLIM 2.5G 25000 SL | SFH63A-08-080 SL LC | 63 | 8 | 14 | 19 | M6 | 80 | 26 |
| HSK-A63 SFH08 120 SLIM 2.5G 25000 SL | SFH63A-08-120 SL LC | 63 | 8 | 14 | 23 | M6 | 120 | 26 |
| HSK-A63 SFH08 160 SLIM 2.5G 25000 SL | SFH63A-08-160 SL LC | 63 | 8 | 14 | 27 | M6 | 160 | 26 |
| HSK-A63 SFH08 200 SLIM 2.5G 25000SL | SFH63A-08-200 SL LC | 63 | 8 | 14 | 27 | M6 | 200 | 26 |
| HSK-A63 SFH10 085 SLIM 2.5G 25000 SL | SFH63A-10-085 SL LC | 63 | 10 | 16 | 21.5 | M8 | 85 | 31 |
| HSK-A63 SFH10 120 SLIM 2.5G 25000 SL | SFH63A-10-120 SL LC | 63 | 10 | 16 | 25 | M8 | 120 | 31 |
| HSK-A63 SFH10 160 SLIM 2.5G 25000 SL | SFH63A-10-160 SL LC | 63 | 10 | 16 | 29 | M8 | 160 | 31 |
| HSK-A63 SFH10 200 SLIM 2.5G 25000 SL | SFH63A-10-200 SL LC | 63 | 10 | 16 | 29 | M8 | 200 | 31 |
| HSK-A63 SFH12 090 SLIM 2.5G 25000 SL | SFH63A-12-090 SL LC | 63 | 12 | 18 | 24 | M10 | 90 | 36 |
| HSK-A63 SFH12 120 SLIM 2.5G 25000 SL | SFH63A-12-120 SL LC | 63 | 12 | 18 | 27 | M10 | 120 | 36 |
| HSK-A63 SFH12 160 SLIM 2.5G 25000 SL | SFH63A-12-160 SL LC | 63 | 12 | 18 | 31 | M10 | 160 | 36 |
| HSK-A63 SFH12 200 SLIM 2.5G 25000SL | SFH63A-12-200 SL LC | 63 | 12 | 18 | 31 | M10 | 200 | 36 |
| HSK-A63 SFH14 090 SLIM 2.5G 25000 SL | SFH63A-14-090 SL LC | 63 | 14 | 20 | 26 | M10 | 90 | 36 |
| HSK-A63 SFH14 120 SLIM 2.5G 25000 SL | SFH63A-14-120 SL LC | 63 | 14 | 20 | 29 | M10 | 120 | 36 |
| HSK-A63 SFH14 160 SLIM 2.5G 25000 SL | SFH63A-14-160 SL LC | 63 | 14 | 20 | 32 | M10 | 160 | 36 |
| HSK-A63 SFH14 200 SLIM 2.5G 25000SL | SFH63A-14-200 SL LC | 63 | 14 | 20 | 32 | M10 | 200 | 36 |
| HSK-A63 SFH16 095 SLIM 2.5G 25000 SL | SFH63A-16-095 SL LC | 63 | 16 | 22 | 28 | M12 | 95 | 39 |
| HSK-A63 SFH16 120 SLIM 2.5G 25000 SL | SFH63A-16-120 SL LC | 63 | 16 | 22 | 31 | M12 | 120 | 39 |
| HSK-A63 SFH16 160 SLIM 2.5G 25000 SL | SFH63A-16-160 SL LC | 63 | 16 | 22 | 34 | M12 | 160 | 39 |
| HSK-A63 SFH16 200 SLIM 2.5G 25000SL | SFH63A-16-200 SL LC | 63 | 16 | 22 | 34 | M12 | 200 | 39 |
| HSK-A63 SFH18 095 SLIM 2.5G 25000 SL | SFH63A-18-095 SL LC | 63 | 18 | 24 | 30 | M12 | 95 | 39 |
| HSK-A63 SFH18 120 SLIM 2.5G 25000 SL | SFH63A-18-120 SL LC | 63 | 18 | 24 | 33 | M12 | 120 | 39 |
| HSK-A63 SFH18 160 SLIM 2.5G 25000 SL | SFH63A-18-160 SL LC | 63 | 18 | 24 | 36 | M12 | 160 | 39 |
| HSK-A63 SFH18 200 SLIM 2.5G 25000SL | SFH63A-18-200 SL LC | 63 | 18 | 24 | 36 | M12 | 200 | 39 |
| HSK-A63 SFH20 100 SLIM 2.5G 25000 SL | SFH63A-20-100 SL LC | 63 | 20 | 26 | 32 | M16 | 100 | 41 |
| HSK-A63 SFH20 120 SLIM 2.5G 25000 SL | SFH63A-20-120 SL LC | 63 | 20 | 26 | 35 | M16 | 120 | 41 |
| HSK-A63 SFH20 160 SLIM 2.5G 25000 SL | SFH63A-20-160 SL LC | 63 | 20 | 26 | 38 | M16 | 160 | 41 |
| HSK-A63 SFH20 200 SLIM 2.5G 25000SL | SFH63A-20-200 SL LC | 63 | 20 | 26 | 38 | M16 | 200 | 41 |
