Schrumpffutter mit Kühlkanalbohrung

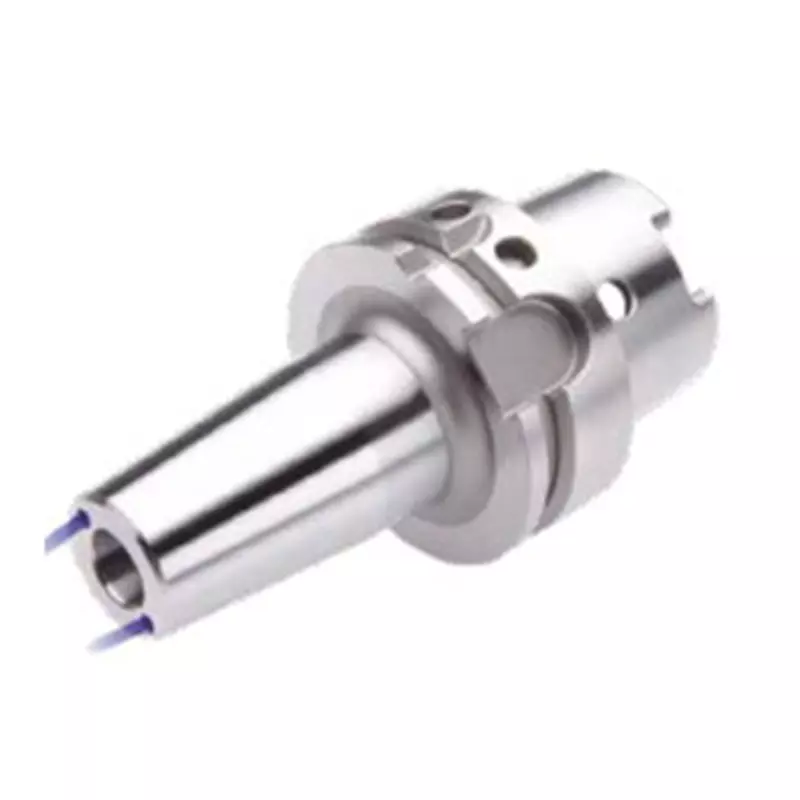

Schrumpffutter mit Kühlkanälen zum Spannen von HM und HSS Werkzeugschäften HSK-AVerwendung:Zur Aufnahme von Werkzeugen mit ZylinderschaftISO 12164-1 / DIN 69893-1 / HSK-A / Rundlaufgenauigkeit  ≤ 0,003 / G6,3 15.000minFür Ø 3, 4 und 5mm nur Hartmetallschäfte verwedenAufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignetSchafttoleranz bei Ø 3, 4 und 5mm = h4, bei Ø 6 - Ø 32mm = h6l1 = max. Einstecktiefel2 = max. Verstellweg

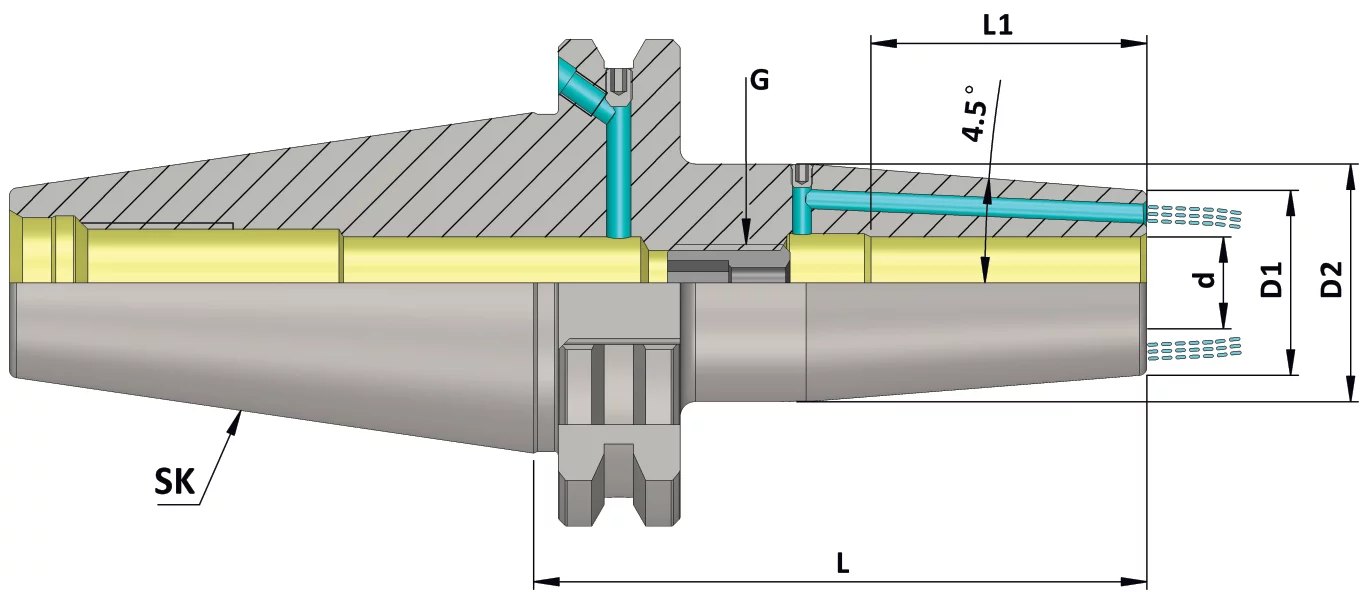

SK 40 (DIN ISO 7388-1) Schrumpffutter KKB (AD+B) AD/ AF (Wuchtgüte 2.5 G 25000 RPM) Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm  Artikelbezeichnung Artikelcode SK d D1 D2 G L L1 SK40 SFH03 080 FCC AD+B/2.5G 25000 SL SFS-41B-03-080 KKB LC 40 3 10 20 - 80 13 SK40 SFH03 120 FCC AD+B/2.5G 25000 SL SFS-41B-03-120 KKB LC 40 3 10 20 - 120 13 SK40 SFH03 160 FCC AD+B/2.5G 25000 SL SFS-41B-03-160 KKB LC 40 3 10 20 - 160 13 SK40 SFH03 200 FCC AD+B/2.5G25000 SL SFS-41B-03-200 KKB LC 40 3 10 20 - 200 13 SK40 SFH04 080 FCC AD+B/2.5G 25000 SL SFS-41B-04-080 KKB LC 40 4 15 22 - 80 14 SK40 SFH04 120 FCC AD+B/2.5G 25000 SL SFS-41B-04-120 KKB LC 40 4 15 22 - 120 14 SK40 SFH04 160 FCC AD+B/2.5G 25000 SL SFS-41B-04-160 KKB LC 40 4 15 22 - 160 14 SK40 SFH04 200 FCC AD+B/2.5G25000 SL SFS-41B-04-200 KKB LC 40 4 15 22 - 200 14 SK40 SFH05 080 FCC AD+B/2.5G 25000 SL SFS-41B-05-080 KKB LC 40 5 15 22 - 80 14 SK40 SFH05 120 FCC AD+B/2.5G 25000 SL SFS-41B-05-120 KKB LC 40 5 15 22 - 120 14 SK40 SFH05 160 FCC AD+B/2.5G 25000 SL SFS-41B-05-160 KKB LC 40 5 15 22 - 160 14 SK40 SFH05 200 FCC AD+B/2.5G25000 SL SFS-41B-05-200 KKB LC 40 5 15 22 - 200 14 SK40 SFH06 080 FCC AD+B/2.5G 25000 SL SFS-41B-06-080 KKB LC 40 6 21 27 M5 80 22 SK40 SFH06 120 FCC AD+B/2.5G 25000 SL SFS-41B-06-120 KKB LC 40 6 21 27 M5 120 22 SK40 SFH06 160 FCC AD+B/2.5G 25000 SL SFS-41B-06-160 KKB LC 40 6 21 27 M5 160 22 SK40 SFH06 200 FCC AD+B/2.5G25000 SL SFS-41B-06-200 KKB LC 40 6 21 27 M5 200 22 SK40 SFH08 080 FCC AD+B/2.5G 25000 SL SFS-41B-08-080 KKB LC 40 8 21 27 M6 80 26 SK40 SFH08 120 FCC AD+B/2.5G 25000 SL SFS-41B-08-120 KKB LC 40 8 21 27 M6 120 26 SK40 SFH08 160 FCC AD+B/2.5G 25000 SL SFS-41B-08-160 KKB LC 40 8 21 27 M6 160 26 SK40 SFH08 200 FCC AD+B/2.5G25000 SL SFS-41B-08-200 KKB LC 40 8 21 27 M6 200 26 SK40 SFH10 080 FCC AD+B/2.5G 25000 SL SFS-41B-10-080 KKB LC 40 10 24 31 M8 80 31 SK40 SFH10 120 FCC AD+B/2.5G 25000 SL SFS-41B-10-120 KKB LC 40 10 24 31 M8 120 31 SK40 SFH10 160 FCC AD+B/2.5G 25000 SL SFS-41B-10-160 KKB LC 40 10 24 31 M8 160 31 SK40 SFH10 200 FCC AD+B/2.5G25000 SL SFS-41B-10-200 KKB LC 40 10 24 31 M8 200 31 SK40 SFH12 080 FCC AD+B/2.5G 25000 SL SFS-41B-12-080 KKB LC 40 12 24 31 M10 80 36 SK40 SFH12 120 FCC AD+B/2.5G 25000 SL SFS-41B-12-120 KKB LC 40 12 24 31 M10 120 36 SK40 SFH12 160 FCC AD+B/2.5G 25000 SL SFS-41B-12-160 KKB LC 40 12 24 31 M10 160 36 SK40 SFH12 200 FCC AD+B/2.5G25000 SL SFS-41B-12-200 KKB LC 40 12 24 31 M10 200 36 SK40 SFH14 080 FCC AD+B/2.5G 25000 SL SFS-41B-14-080 KKB LC 40 14 27 34 M10 80 36 SK40 SFH14 120 FCC AD+B/2.5G 25000 SL SFS-41B-14-120 KKB LC 40 14 27 34 M10 120 36 SK40 SFH14 160 FCC AD+B/2.5G 25000 SL SFS-41B-14-160 KKB LC 40 14 27 34 M10 160 36 SK40 SFH14 200 FCC AD+B/2.5G25000 SL SFS-41B-14-200 KKB LC 40 14 27 34 M10 200 36 SK40 SFH16 080 FCC AD+B/2.5G 25000 SL SFS-41B-16-080 KKB LC 40 16 27 34 M12 80 39 SK40 SFH16 120 FCC AD+B/2.5G 25000 SL SFS-41B-16-120 KKB LC 40 16 27 34 M12 120 39 SK40 SFH16 160 FCC AD+B/2.5G 25000 SL SFS-41B-16-160 KKB LC 40 16 27 34 M12 160 39 SK40 SFH16 200 FCC AD+B/2.5G25000 SL SFS-41B-16-200 KKB LC 40 16 27 34 M12 200 39 SK40 SFH18 080 FCC AD+B/2.5G 25000 SL SFS-41B-18-080 KKB LC 40 18 33 40 M12 80 39 SK40 SFH18 120 FCC AD+B/2.5G 25000 SL SFS-41B-18-120 KKB LC 40 18 33 40 M12 120 39 SK40 SFH18 160 FCC AD+B/2.5G 25000 SL SFS-41B-18-160 KKB LC 40 18 33 40 M12 160 39 SK40 SFH18 200 FCC AD+B/2.5G25000 SL SFS-41B-18-200 KKB LC 40 18 33 40 M12 200 39 SK40 SFH20 080 FCC AD+B/2.5G 25000 SL SFS-41B-20-080 KKB LC 40 20 33 40 M16 80 41 SK40 SFH20 120 FCC AD+B/2.5G 25000 SL SFS-41B-20-120 KKB LC 40 20 33 40 M16 120 41 SK40 SFH20 160 FCC AD+B/2.5G 25000 SL SFS-41B-20-160 KKB LC 40 20 33 40 M16 160 41 SK40 SFH20 200 FCC AD+B/2.5G25000 SL SFS-41B-20-200 KKB LC 40 20 33 40 M16 200 41 SK40 SFH25 100 FCC AD+B/2.5G 25000 SL SFS-41B-25-100 KKB LC 40 25 44 53 M16 100 47 SK40 SFH25 120 FCC AD+B/2.5G 25000 SL SFS-41B-25-120 KKB LC 40 25 44 53 M16 120 47 SK40 SFH25 160 FCC AD+B/2.5G 25000 SL SFS-41B-25-160 KKB LC 40 25 44 53 M16 160 47 SK40 SFH25 200 FCC AD+B/2.5G25000 SL SFS-41B-25-200 KKB LC 40 25 44 53 M16 200 47 SK40 SFH32 100 FCC AD+B/2.5G 25000 SL SFS-41B-32-100 KKB LC 40 32 44 53 M16 100 51 SK40 SFH32 120 FCC AD+B/2.5G 25000 SL SFS-41B-32-120 KKB LC 40 32 44 53 M16 120 51 SK40 SFH32 160 FCC AD+B/2.5G 25000 SL SFS-41B-32-160 KKB LC 40 32 44 53 M16 160 51 SK40 SFH32 200 FCC AD+B/2.5G25000 SL SFS-41B-32-200 KKB LC 40 32 44 53 M16 200 51

HSK-A 63 (DIN 69893-1) Schrumpffutter KKB  (Wuchtgüte 2.5 G 25000 RPM) Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm  Artikelbezeichnung Artikelcode HSK-A d D1 D2 G L L1 HSK-A 50 SFH03 080 FCC 2.5G 25000 SL SFH50A-03-080 KKB LC 50 3 10 20 - 80 13 HSK-A 50 SFH03 120 FCC 2.5G 25000 SL SFH50A-03-120 KKB LC 50 3 10 20 - 120 13 HSK-A 50 SFH03 160 FCC 2.5G 25000 SL SFH50A-03-160 KKB LC 50 3 10 20 - 160 13 HSK-A 50 SFH04 080 FCC 2.5G 25000 SL SFH50A-04-080 KKB LC 50 4 15 22 - 80 14 HSK-A 50 SFH04 120 FCC 2.5G 25000 SL SFH50A-04-120 KKB LC 50 4 15 22 - 120 14 HSK-A 50 SFH04 160 FCC 2.5G 25000 SL SFH50A-04-160 KKB LC 50 4 15 22 - 160 14 HSK-A 50 SFH05 080 FCC 2.5G 25000 SL SFH50A-05-080 KKB LC 50 5 15 22 - 80 14 HSK-A 50 SFH05 120 FCC 2.5G 25000 SL SFH50A-05-120 KKB LC 50 5 15 22 - 120 14 HSK-A 50 SFH05 160 FCC 2.5G 25000 SL SFH50A-05-160 KKB LC 50 5 15 22 - 160 14 HSK-A 50 SFH06 080 FCC 2.5G 25000 SL SFH50A-06-080 KKB LC 50 6 21 27 M5 80 22 HSK-A 50 SFH06 120 FCC 2.5G 25000 SL SFH50A-06-120 KKB LC 50 6 21 27 M5 120 22 HSK-A 50 SFH06 160 FCC 2.5G 25000 SL SFH50A-06-160 KKB LC 50 6 21 27 M5 160 22 HSK-A 50 SFH08 080 FCC 2.5G 25000 SL SFH50A-08-080 KKB LC 50 8 21 27 M6 80 26 HSK-A 50 SFH08 120 FCC 2.5G 25000 SL SFH50A-08-120 KKB LC 50 8 21 27 M6 120 26 HSK-A 50 SFH08 160 FCC 2.5G 25000 SL SFH50A-08-160 KKB LC 50 8 21 27 M6 160 26 HSK-A 50 SFH10 085 FCC 2.5G 25000 SL SFH50A-10-085 KKB LC 50 10 24 31 M8 85 31 HSK-A 50 SFH10 120 FCC 2.5G 25000 SL SFH50A-10-120 KKB LC 50 10 24 31 M8 120 31 HSK-A 50 SFH10 160 FCC 2.5G 25000 SL SFH50A-10-160 KKB LC 50 10 24 31 M8 160 31 HSK-A 50 SFH12 090 FCC 2.5G 25000 SL SFH50A-12-090 KKB LC 50 12 24 31 M10 90 36 HSK-A 50 SFH12 120 FCC 2.5G 25000 SL SFH50A-12-120 KKB LC 50 12 24 31 M10 120 36 HSK-A 50 SFH12 160 FCC 2.5G 25000 SL SFH50A-12-160 KKB LC 50 12 24 31 M10 160 36 HSK-A 50 SFH14 090 FCC 2.5G 25000 SL SFH50A-14-090 KKB LC 50 14 27 34 M10 90 36 HSK-A 50 SFH14 120 FCC 2.5G 25000 SL SFH50A-14-120 KKB LC 50 14 27 34 M10 120 36 HSK-A 50 SFH14 160 FCC 2.5G 25000 SL SFH50A-14-160 KKB LC 50 14 27 34 M10 160 36 HSK-A 50 SFH16 095 FCC 2.5G 25000 SL SFH50A-16-095 KKB LC 50 16 27 34 M12 95 39 HSK-A 50 SFH16 120 FCC 2.5G 25000 SL SFH50A-16-120 KKB LC 50 16 27 34 M12 120 39 HSK-A 50 SFH16 160 FCC 2.5G 25000 SL SFH50A-16-160 KKB LC 50 16 27 34 M12 160 39 HSK-A 50 SFH18 095 FCC 2.5G 25000 SL SFH50A-18-095 KKB LC 50 18 33 40 M12 95 39 HSK-A 50 SFH18 120 FCC 2.5G 25000 SL SFH50A-18-120 KKB LC 50 18 33 40 M12 120 39 HSK-A 50 SFH18 160 FCC 2.5G 25000 SL SFH50A-18-160 KKB LC 50 18 33 40 M12 160 39 HSK-A 50 SFH20 100 FCC 2.5G 25000 SL SFH50A-20-100 KKB LC 50 20 33 40 M16 100 41 HSK-A 50 SFH20 120 FCC 2.5G 25000 SL SFH50A-20-120 KKB LC 50 20 33 40 M16 120 41 HSK-A 50 SFH20 160 FCC 2.5G 25000 SL SFH50A-20-160 KKB LC 50 20 33 40 M16 160 41
