Schrumpffutter schlank

HSK-A 63 (DIN 69893-1) Schrumpffutter schlank (Wuchtgüte 2.5 G 25000 RPM) Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist < 0.003 mm Artikelbezeichnung Artikelcode HSK-A d D1 D2 G L L1 HSK-A 63 SFH03 080 SLIM 2.5G 25000 SL SFH63A-03-080 SL LC 63 3 9 14 - 80 13 HSK-A 63 SFH03 120 SLIM 2.5G 25000 SL SFH63A-03-120 SL LC 63 3 9 18 - 120 13 HSK-A 63 SFH03 160 SLIM 2.5G 25000 SL SFH63A-03-160 SL LC 63 3 9 19 - 160 13 HSK-A 63 SFH03 200 SLIM 2.5G 25000SL SFH63A-03-200 SL LC 63 3 9 19 - 200 13 HSK-A 63 SFH04 080 SLIM 2.5G 25000 SL SFH63A-04-080 SL LC 63 4 10 15 - 80 14 HSK-A 63 SFH04 120 SLIM 2.5G 25000 SL SFH63A-04-120 SL LC 63 4 10 19 - 120 14 HSK-A 63 SFH04 160 SLIM 2.5G 25000 SL SFH63A-04-160 SL LC 63 4 10 23 - 160 14 HSK-A 63 SFH04 200 SLIM 2.5G 25000SL SFH63A-04-200 SL LC 63 4 10 23 - 200 14 HSK-A 63 SFH05 080 SLIM 2.5G 25000 SL SFH63A-05-080 SL LC 63 5 11 16 - 80 14 HSK-A 63 SFH05 120 SLIM 2.5G 25000 SL SFH63A-05-120 SL LC 63 5 11 20 - 120 14 HSK-A 63 SFH05 160 SLIM 2.5G 25000 SL SFH63A-05-160 SL LC 63 5 11 24 - 160 14 HSK-A 63 SFH05 200 SLIM 2.5G 25000SL SFH63A-05-200 SL LC 63 5 11 24 - 200 14 HSK-A 63 SFH06 080 SLIM 2.5G 25000 SL SFH63A-06-080 SL LC 63 6 12 17 M5 80 22 HSK-A 63 SFH06 120 SLIM 2.5G 25000 SL SFH63A-06-120 SL LC 63 6 12 21 M5 120 22 HSK-A 63 SFH06 160 SLIM 2.5G 25000 SL SFH63A-06-160 SL LC 63 6 12 25 M5 160 22 HSK-A 63 SFH06 200 SLIM 2.5G 25000SL SFH63A-06-200 SL LC 63 6 12 25 M5 200 22 HSK-A 63 SFH08 080 SLIM 2.5G 25000 SL SFH63A-08-080 SL LC 63 8 14 19 M6 80 26 HSK-A 63 SFH08 120 SLIM 2.5G 25000 SL SFH63A-08-120 SL LC 63 8 14 23 M6 120 26 HSK-A 63 SFH08 160 SLIM 2.5G 25000 SL SFH63A-08-160 SL LC 63 8 14 27 M6 160 26 HSK-A 63 SFH08 200 SLIM 2.5G 25000SL SFH63A-08-200 SL LC 63 8 14 27 M6 200 26 HSK-A 63 SFH10 085 SLIM 2.5G 25000 SL SFH63A-10-085 SL LC 63 10 16 21.5 M8 85 31 HSK-A 63 SFH10 120 SLIM 2.5G 25000 SL SFH63A-10-120 SL LC 63 10 16 25 M8 120 31 HSK-A 63 SFH10 160 SLIM 2.5G 25000 SL SFH63A-10-160 SL LC 63 10 16 29 M8 160 31 HSK-A 63 SFH10 200 SLIM 2.5G 25000 SL SFH63A-10-200 SL LC 63 10 16 29 M8 200 31 HSK-A 63 SFH12 090 SLIM 2.5G 25000 SL SFH63A-12-090 SL LC 63 12 18 24 M10 90 36 HSK-A 63 SFH12 120 SLIM 2.5G 25000 SL SFH63A-12-120 SL LC 63 12 18 27 M10 120 36 HSK-A 63 SFH12 160 SLIM 2.5G 25000 SL SFH63A-12-160 SL LC 63 12 18 31 M10 160 36 HSK-A 63 SFH12 200 SLIM 2.5G 25000SL SFH63A-12-200 SL LC 63 12 18 31 M10 200 36 HSK-A 63 SFH14 090 SLIM 2.5G 25000 SL SFH63A-14-090 SL LC 63 14 20 26 M10 90 36 HSK-A 63 SFH14 120 SLIM 2.5G 25000 SL SFH63A-14-120 SL LC 63 14 20 29 M10 120 36 HSK-A 63 SFH14 160 SLIM 2.5G 25000 SL SFH63A-14-160 SL LC 63 14 20 32 M10 160 36 HSK-A 63 SFH14 200 SLIM 2.5G 25000SL SFH63A-14-200 SL LC 63 14 20 32 M10 200 36 HSK-A 63 SFH16 095 SLIM 2.5G 25000 SL SFH63A-16-095 SL LC 63 16 22 28 M12 95 39 HSK-A 63 SFH16 120 SLIM 2.5G 25000 SL SFH63A-16-120 SL LC 63 16 22 31 M12 120 39 HSK-A 63 SFH16 160 SLIM 2.5G 25000 SL SFH63A-16-160 SL LC 63 16 22 34 M12 160 39 HSK-A 63 SFH16 200 SLIM 2.5G 25000SL SFH63A-16-200 SL LC 63 16 22 34 M12 200 39 HSK-A 63 SFH18 095 SLIM 2.5G 25000 SL SFH63A-18-095 SL LC 63 18 24 30 M12 95 39 HSK-A 63 SFH18 120 SLIM 2.5G 25000 SL SFH63A-18-120 SL LC 63 18 24 33 M12 120 39 HSK-A 63 SFH18 160 SLIM 2.5G 25000 SL SFH63A-18-160 SL LC 63 18 24 36 M12 160 39 HSK-A 63 SFH18 200 SLIM 2.5G 25000SL SFH63A-18-200 SL LC 63 18 24 36 M12 200 39 HSK-A 63 SFH20 100 SLIM 2.5G 25000 SL SFH63A-20-100 SL LC 63 20 26 32 M16 100 41 HSK-A 63 SFH20 120 SLIM 2.5G 25000 SL SFH63A-20-120 SL LC 63 20 26 35 M16 120 41 HSK-A 63 SFH20 160 SLIM 2.5G 25000 SL SFH63A-20-160 SL LC 63 20 26 38 M16 160 41 HSK-A 63 SFH20 200 SLIM 2.5G 25000SL SFH63A-20-200 SL LC 63 20 26 38 M16 200 41

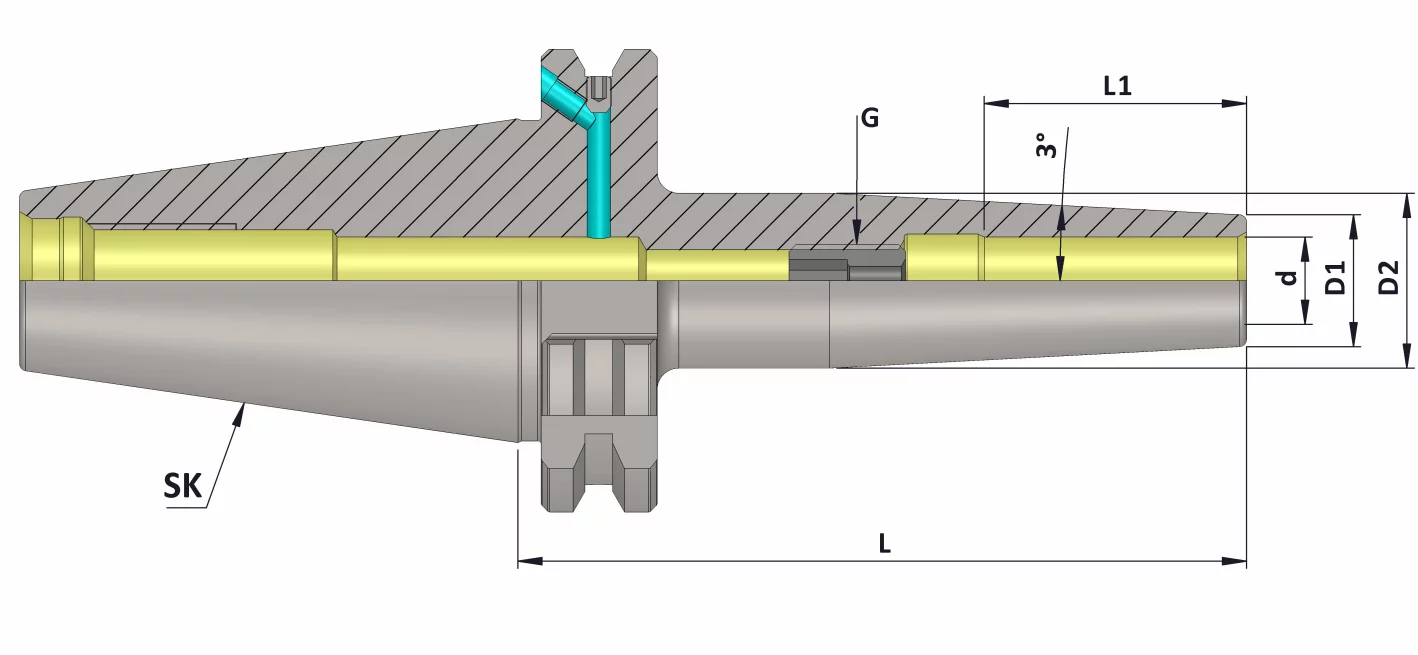

SK 40 (DIN ISO 7388-1) Schrumpffutter schlank (AD+B) AD/ AF (Wuchtgüte 2.5 G 25000 RPM) Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm  Artikelbezeichnung Artikelcode SK d D1 D2 G L L1 SK40 SFH03 080 SLIM AD+B/2.5G 25000 SL SFS-41B-03-080 SL LC 40 3 9 14 - 80 13 SK40 SFH03 120 SLIM AD+B/2.5G 25000 SL SFS-41B-03-120 SL LC 40 3 9 18 - 120 13 SK40 SFH03 160 SLIM AD+B/2.5G 25000 SL SFS-41B-03-160 SL LC 40 3 9 19 - 160 13 SK40 SFH03 200 SLIM AD+B/2.5G 25000 SL SFS-41B-03-200 SL LC 40 3 9 19 - 200 13 SK40 SFH04 080 SLIM AD+B/2.5G 25000 SL SFS-41B-04-080 SL LC 40 4 10 15 - 80 14 SK40 SFH04 120 SLIM AD+B/2.5G 25000 SL SFS-41B-04-120 SL LC 40 4 10 19 - 120 14 SK40 SFH04 160 SLIM AD+B/2.5G 25000 SL SFS-41B-04-160 SL LC 40 4 10 20 - 160 14 SK40 SFH04 200 SLIM AD+B/2.5G 25000 SL SFS-41B-04-200 SL LC 40 4 10 20 - 200 14 SK40 SFH05 080 SLIM AD+B/2.5G 25000 SL SFS-41B-05-080 SL LC 40 5 11 16 - 80 14 SK40 SFH05 120 SLIM AD+B/2.5G 25000 SL SFS-41B-05-120 SL LC 40 5 11 20 - 120 14 SK40 SFH05 160 SLIM AD+B/2.5G 25000 SL SFS-41B-05-160 SL LC 40 5 11 21 - 160 14 SK40 SFH05 200 SLIM AD+B/2.5G 25000 SL SFS-41B-05-200 SL LC 40 5 11 21 - 200 14 SK40 SFH06 080 SLIM AD+B/2.5G 25000 SL SFS-41B-06-080 SL LC 40 6 12 17 M5 80 22 SK40 SFH06 120 SLIM AD+B/2.5G 25000 SL SFS-41B-06-120 SL LC 40 6 12 21 M5 120 22 SK40 SFH06 160 SLIM AD+B/2.5G 25000 SL SFS-41B-06-160 SL LC 40 6 12 25 M5 160 22 SK40 SFH06 200 SLIM AD+B/2.5G 25000 SL SFS-41B-06-200 SL LC 40 6 12 25 M5 200 22 SK40 SFH08 080 SLIM AD+B/2.5G 25000 SL SFS-41B-08-080 SL LC 40 8 14 19 M6 80 26 SK40 SFH08 120 SLIM AD+B/2.5G 25000 SL SFS-41B-08-120 SL LC 40 8 14 23 M6 120 26 SK40 SFH08 160 SLIM AD+B/2.5G 25000 SL SFS-41B-08-160 SL LC 40 8 14 27 M6 160 26 SK40 SFH08 200 SLIM AD+B/2.5G 25000 SL SFS-41B-08-200 SL LC 40 8 14 27 M6 200 26 SK40 SFH10 080 SLIM AD+B/2.5G 25000 SL SFS-41B-10-080 SL LC 40 10 16 21 M8 80 31 SK40 SFH10 120 SLIM AD+B/2.5G 25000 SL SFS-41B-10-120 SL LC 40 10 16 25 M8 120 31 SK40 SFH10 160 SLIM AD+B/2.5G 25000 SL SFS-41B-10-160 SL LC 40 10 16 29 M8 160 31 SK40 SFH10 200 SLIM AD+B/2.5G 25000 SL SFS-41B-10-200 SL LC 40 10 16 29 M8 200 31 SK40 SFH12 080 SLIM AD+B/2.5G 25000 SL SFS-41B-12-080 SL LC 40 12 18 23 M10 80 36 SK40 SFH12 120 SLIM AD+B/2.5G 25000 SL SFS-41B-12-120 SL LC 40 12 18 27 M10 120 36 SK40 SFH12 160 SLIM AD+B/2.5G 25000 SL SFS-41B-12-160 SL LC 40 12 18 31 M10 160 36 SK40 SFH12 200 SLIM AD+B/2.5G 25000 SL SFS-41B-12-200 SL LC 40 12 18 31 M10 200 36 SK40 SFH14 080 SLIM AD+B/2.5G 25000 SL SFS-41B-14-080 SL LC 40 14 20 26 M10 80 36 SK40 SFH14 120 SLIM AD+B/2.5G 25000 SL SFS-41B-14-120 SL LC 40 14 20 29 M10 120 36 SK40 SFH14 160 SLIM AD+B/2.5G 25000 SL SFS-41B-14-160 SL LC 40 14 20 32 M10 160 36 SK40 SFH14 200 SLIM AD+B/2.5G 25000 SL SFS-41B-14-200 SL LC 40 14 20 32 M10 200 36 SK40 SFH16 080 SLIM AD+B/2.5G 25000 SL SFS-41B-16-080 SL LC 40 16 22 28 M12 80 39 SK40 SFH16 120 SLIM AD+B/2.5G 25000 SL SFS-41B-16-120 SL LC 40 16 22 31 M12 120 39 SK40 SFH16 160 SLIM AD+B/2.5G 25000 SL SFS-41B-16-160 SL LC 40 16 22 34 M12 160 39 SK40 SFH16 200 SLIM AD+B/2.5G 25000 SL SFS-41B-16-200 SL LC 40 16 22 34 M12 200 39 SK40 SFH18 080 SLIM AD+B/2.5G 25000 SL SFS-41B-18-080 SL LC 40 18 24 30 M12 80 39 SK40 SFH18 120 SLIM AD+B/2.5G 25000 SL SFS-41B-18-120 SL LC 40 18 24 33 M12 120 39 SK40 SFH18 160 SLIM AD+B/2.5G 25000 SL SFS-41B-18-160 SL LC 40 18 24 36 M12 160 39 SK40 SFH18 200 SLIM AD+B/2.5G 25000 SL SFS-41B-18-200 SL LC 40 18 24 36 M12 200 39 SK40 SFH20 080 SLIM AD+B/2.5G 25000 SL SFS-41B-20-080 SL LC 40 20 26 32 M16 80 41 SK40 SFH20 120 SLIM AD+B/2.5G 25000 SL SFS-41B-20-120 SL LC 40 20 26 35 M16 120 41 SK40 SFH20 160 SLIM AD+B/2.5G 25000 SL SFS-41B-20-160 SL LC 40 20 26 38 M16 160 41 SK40 SFH20 200 SLIM AD+B/2.5G 25000 SL SFS-41B-20-200 SL LC 40 20 26 38 M16 200 41
