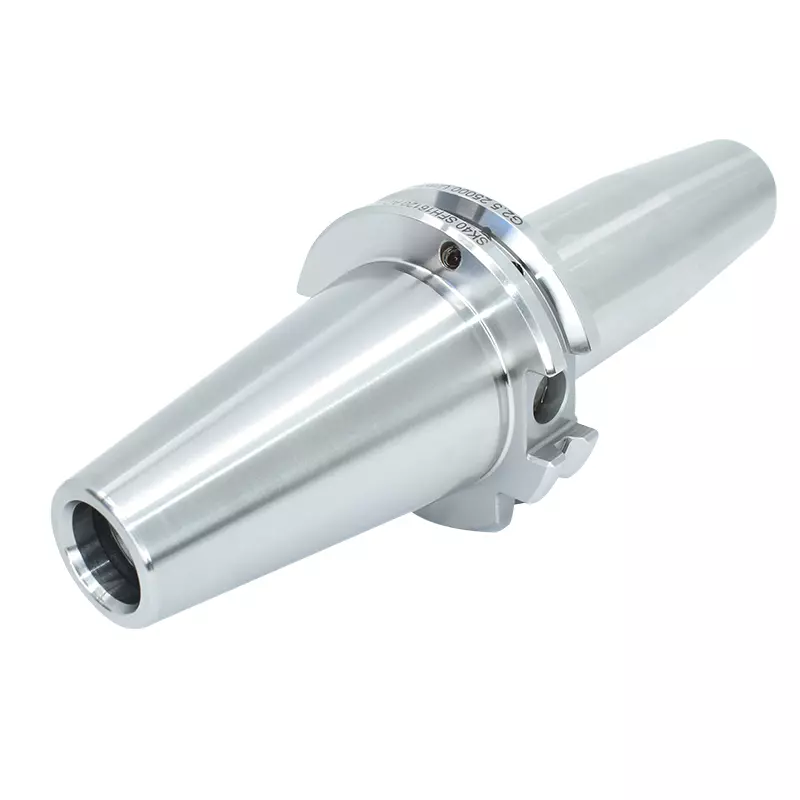

SK 40 (DIN ISO 7388-1) Schrumpffutter (AD+B) AD/AF
Produktnummer: SFS-41-25-100 LC
Produktinformationen "SK 40 (DIN ISO 7388-1) Schrumpffutter (AD+B) AD/AF"
SK 40 (DIN ISO 7388-1) Schrumpffutter (AD+B) AD/AF
(Wuchtgüte 2.5 G 25000 RPM)
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm
Maximaler Rundlauffehler des inneren Ø zum äußeren Kegel ist <0.003 mm
| Artikelbezeichnung | Artikelcode | SK | d | D1 | D2 | G | L | L1 |
| SK 40 SFH03 080 AD+B/2.5G 25000 SL | SFS-41-03-080 LC | 40 | 3 | 10 | 20 | - | 80 | 13 |
| SK 40 SFH03 120 AD+B/2.5G 25000 SL | SFS-41-03-120 LC | 40 | 3 | 10 | 20 | - | 120 | 13 |
| SK 40 SFH03 160 AD+B/2.5G 25000 SL | SFS-41-03-160 LC | 40 | 3 | 10 | 20 | - | 160 | 13 |
| SK40 SFH03 200 AD+B/2.5G 25000 SL | SFS-41-03-200 LC | 40 | 3 | 10 | 20 | - | 200 | 13 |
| SK 40 SFH04 080 AD+B/2.5G 25000 SL | SFS-41-04-080 LC | 40 | 4 | 15 | 22 | - | 80 | 14 |
| SK 40 SFH04 120 AD+B/2.5G 25000 SL | SFS-41-04-120 LC | 40 | 4 | 15 | 22 | - | 120 | 14 |
| SK 40 SFH04 160 AD+B/2.5G 25000 SL | SFS-41-04-160 LC | 40 | 4 | 15 | 22 | - | 160 | 14 |
| SK40 SFH04 200 AD+B/2.5G 25000 SL | SFS-41-04-200 LC | 40 | 4 | 15 | 22 | - | 200 | 14 |
| SK 40 SFH05 080 AD+B/2.5G 25000 SL | SFS-41-05-080 LC | 40 | 5 | 15 | 22 | - | 80 | 14 |
| SK 40 SFH05 120 AD+B/2.5G 25000 SL | SFS-41-05-120 LC | 40 | 5 | 15 | 22 | - | 120 | 14 |
| SK 40 SFH05 160 AD+B/2.5G 25000 SL | SFS-41-05-160 LC | 40 | 5 | 15 | 22 | - | 160 | 14 |
| SK40 SFH05 200 AD+B/2.5G 25000 SL | SFS-41-05-200 LC | 40 | 5 | 15 | 22 | - | 200 | 14 |
| SK 40 SFH06 080 AD+B/2.5G 25000 SL | SFS-41-06-080 LC | 40 | 6 | 21 | 27 | M5 | 80 | 22 |
| SK 40 SFH06 120 AD+B/2.5G 25000 SL | SFS-41-06-120 LC | 40 | 6 | 21 | 27 | M5 | 120 | 22 |
| SK 40 SFH06 160 AD+B/2.5G 25000 SL | SFS-41-06-160 LC | 40 | 6 | 21 | 27 | M5 | 160 | 22 |
| SK40 SFH06 200 AD+B/2.5G 25000 SL | SFS-41-06-200 LC | 40 | 6 | 21 | 27 | M5 | 200 | 22 |
| SK 40 SFH08 080 AD+B/2.5G 25000 SL | SFS-41-08-080 LC | 40 | 8 | 21 | 27 | M6 | 80 | 26 |
| SK 40 SFH08 120 AD+B/2.5G 25000 SL | SFS-41-08-120 LC | 40 | 8 | 21 | 27 | M6 | 120 | 26 |
| SK 40 SFH08 160 AD+B/2.5G 25000 SL | SFS-41-08-160 LC | 40 | 8 | 21 | 27 | M6 | 160 | 26 |
| SK40 SFH08 200 AD+B/2.5G 25000 SL | SFS-41-08-200 LC | 40 | 8 | 21 | 27 | M6 | 200 | 26 |
| SK 40 SFH10 080 AD+B/2.5G 25000 SL | SFS-41-10-080 LC | 40 | 10 | 24 | 31 | M8 | 80 | 31 |
| SK 40 SFH10 120 AD+B/2.5G 25000 SL | SFS-41-10-120 LC | 40 | 10 | 24 | 31 | M8 | 120 | 31 |
| SK 40 SFH10 160 AD+B/2.5G 25000 SL | SFS-41-10-160 LC | 40 | 10 | 24 | 31 | M8 | 160 | 31 |
| SK40 SFH10 200 AD+B/2.5G 25000 SL | SFS-41-10-200 LC | 40 | 10 | 24 | 31 | M8 | 200 | 31 |
| SK 40 SFH12 080 AD+B/2.5G 25000 SL | SFS-41-12-080 LC | 40 | 12 | 24 | 31 | M10 | 80 | 36 |
| SK 40 SFH12 120 AD+B/2.5G 25000 SL | SFS-41-12-120 LC | 40 | 12 | 24 | 31 | M10 | 120 | 36 |
| SK 40 SFH12 160 AD+B/2.5G 25000 SL | SFS-41-12-160 LC | 40 | 12 | 24 | 31 | M10 | 160 | 36 |
| SK40 SFH12 200 AD+B/2.5G 25000 SL | SFS-41-12-200 LC | 40 | 12 | 24 | 31 | M10 | 200 | 36 |
| SK 40 SFH14 080 AD+B/2.5G 25000 SL | SFS-41-14-080 LC | 40 | 14 | 27 | 34 | M10 | 80 | 36 |
| SK 40 SFH14 120 AD+B/2.5G 25000 SL | SFS-41-14-120 LC | 40 | 14 | 27 | 34 | M10 | 120 | 36 |
| SK 40 SFH14 160 AD+B/2.5G 25000 SL | SFS-41-14-160 LC | 40 | 14 | 27 | 34 | M10 | 160 | 36 |
| SK40 SFH14 200 AD+B/2.5G 25000 SL | SFS-41-14-200 LC | 40 | 14 | 27 | 34 | M10 | 200 | 36 |
| SK 40 SFH16 080 AD+B/2.5G 25000 SL | SFS-41-16-080 LC | 40 | 16 | 27 | 34 | M12 | 80 | 39 |
| SK 40 SFH16 120 AD+B/2.5G 25000 SL | SFS-41-16-120 LC | 40 | 16 | 27 | 34 | M12 | 120 | 39 |
| SK 40 SFH16 160 AD+B/2.5G 25000 SL | SFS-41-16-160 LC | 40 | 16 | 27 | 34 | M12 | 160 | 39 |
| SK40 SFH16 200 AD+B/2.5G 25000 SL | SFS-41-16-200 LC | 40 | 16 | 27 | 34 | M12 | 200 | 39 |
| SK 40 SFH18 080 AD+B/2.5G 25000 SL | SFS-41-18-080 LC | 40 | 18 | 33 | 40 | M12 | 80 | 39 |
| SK 40 SFH18 120 AD+B/2.5G 25000 SL | SFS-41-18-120 LC | 40 | 18 | 33 | 40 | M12 | 120 | 39 |
| SK 40 SFH18 160 AD+B/2.5G 25000 SL | SFS-41-18-160 LC | 40 | 18 | 33 | 40 | M12 | 160 | 39 |
| SK40 SFH18 200 AD+B/2.5G 25000 SL | SFS-41-18-200 LC | 40 | 18 | 33 | 40 | M12 | 200 | 39 |
| SK 40 SFH20 080 AD+B/2.5G 25000 SL | SFS-41-20-080 LC | 40 | 20 | 33 | 40 | M16 | 80 | 41 |
| SK 40 SFH20 120 AD+B/2.5G 25000 SL | SFS-41-20-120 LC | 40 | 20 | 33 | 40 | M16 | 120 | 41 |
| SK 40 SFH20 160 AD+B/2.5G 25000 SL | SFS-41-20-160 LC | 40 | 20 | 33 | 40 | M16 | 160 | 41 |
| SK40 SFH20 200 AD+B/2.5G 25000 SL | SFS-41-20-200 LC | 40 | 20 | 33 | 40 | M16 | 200 | 41 |
| SK 40 SFH25 100 AD+B/2.5G 25000 SL | SFS-41-25-100 LC | 40 | 25 | 44 | 53 | M16 | 100 | 47 |
| SK 40 SFH25 120 AD+B/2.5G 25000 SL | SFS-41-25-120 LC | 40 | 25 | 44 | 53 | M16 | 120 | 47 |
| SK 40 SFH25 160 AD+B/2.5G 25000 SL | SFS-41-25-160 LC | 40 | 25 | 44 | 53 | M16 | 160 | 47 |
| SK40 SFH25 200 AD+B/2.5G 25000 SL | SFS-41-25-200 LC | 40 | 25 | 44 | 53 | M16 | 200 | 47 |
| SK 40 SFH32 100 AD+B/2.5G 25000 SL | SFS-41-32-100 LC | 40 | 32 | 44 | 53 | M16 | 100 | 51 |
| SK 40 SFH32 120 AD+B/2.5G 25000 SL | SFS-41-32-120 LC | 40 | 32 | 44 | 53 | M16 | 120 | 51 |
| SK 40 SFH32 160 AD+B/2.5G 25000 SL | SFS-41-32-160 LC | 40 | 32 | 44 | 53 | M16 | 160 | 51 |
| SK40 SFH32 200 AD+B/2.5G 25000 SL | SFS-41-32-200 LC | 40 | 32 | 44 | 53 | M16 | 200 | 51 |
